sAXTON cREEK CULVERT

Saxton Creek Culvert Project

At Specialised Concrete Products Ltd (SCP), we take pride in helping shape New Zealand’s infrastructure landscape through precision engineering, innovation, and craftsmanship. Our Saxton Creek Project in the Nelson region is another great example of this commitment in action — a comprehensive delivery of high-quality precast solutions built to last.


Project Overview

The Saxton Creek development required a robust and durable water management system to support flood resilience and environmental protection in the area. Working closely with the Council, and head contractors Downer NZ Ltd, SCP was entrusted to manufacture and supply a range of custom precast components essential to the project’s success. Over 1300m3 of concrete was used.


Our scope of works included the production and supply of:

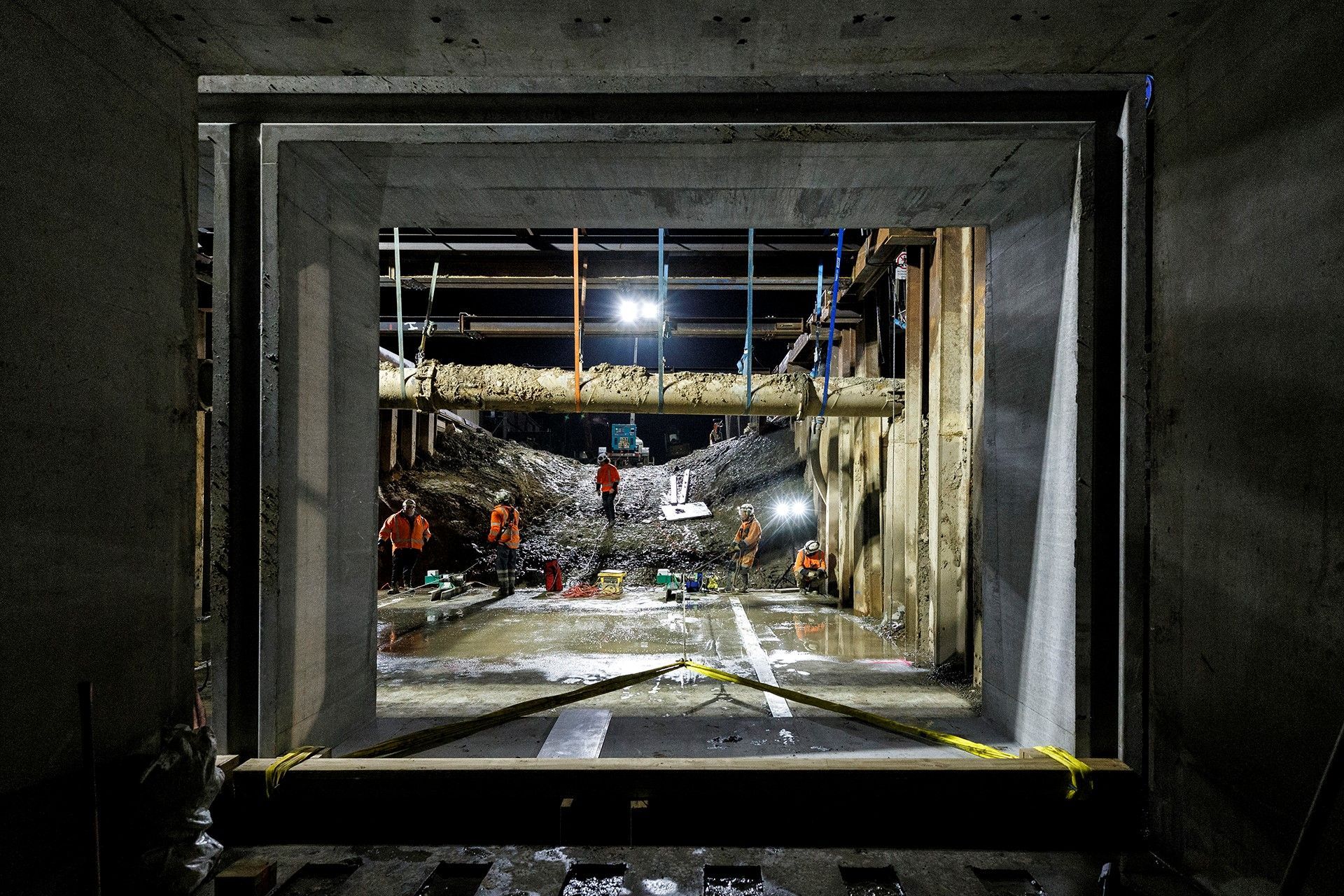

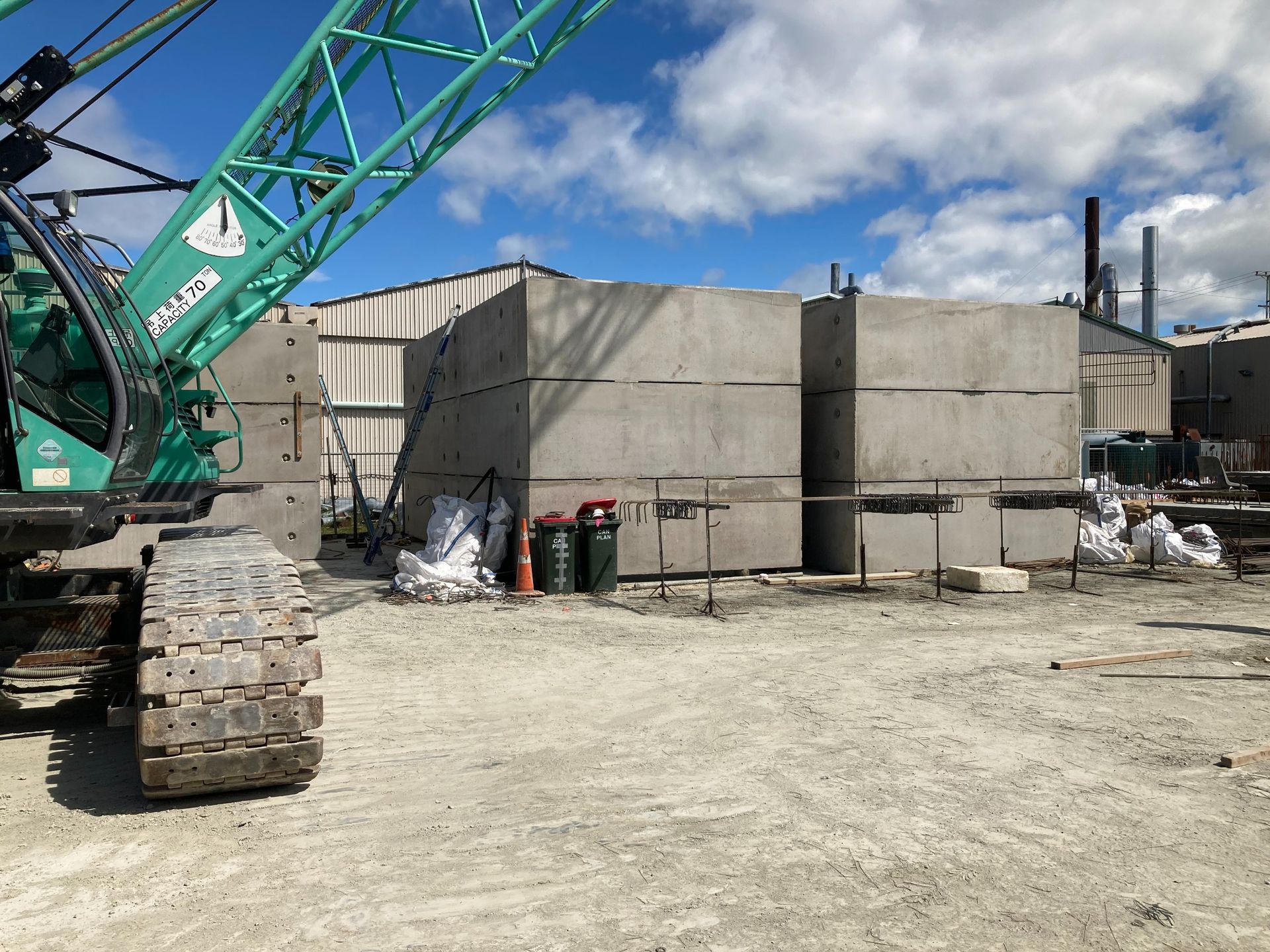

  • 65 box culvert units – approx. 26,000kg each.

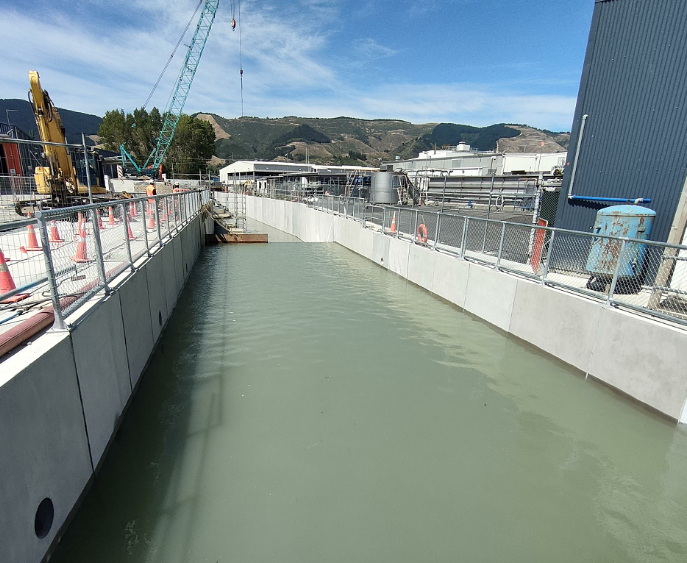

  • 121 open culvert sections – manufactured to precise tolerances to follow the curves of the original creek.


  • Bespoke headwalls and wingwalls – featuring integrated design elements that complemented both functionality and aesthetics.


  • 37 precast boundary walls – providing a barrier between neighbouring sites and the culvert


Client
Downer
Completion date
18th April 2024
Category
Commercial

Cultural Expression Through Design

An especially meaningful aspect of this project was the etching on the headwall. Tangaroa, God of The Sea, now overlooks the Saxton Creek culvert, represented by Toi Māori artworks designed by Nelson artist Isaac Andersen (Ngāti Kuia, Ngāti Porou). The design, symbolising the taonga species that thrive in the Saxton Tidal Creek area.



Andersen provided an explanation of his artwork:

“The head of Tangaroa is depicted in the shape of a wheke (octopus), and the eight iwi of Te Tauihu are also embodied within the design. The scales on his body represent sea birds and the larger fin scales, the Paddle Crab. His tail wraps around and fans out with the large scale at the base symbolising the Stingray.”


Challenges

The Saxton Creek culvert works were delivered under a range of technical and environmental constraints that required detailed engineering input and adaptive construction methodology. Variable weather conditions, including periods of sustained rainfall, influenced ground conditions, handling operations, and installation sequencing, requiring continuous review of lifting plans, tolerances, and programme logic.


The project alignment intersected with multiple existing services, necessitating tight dimensional control of precast elements, coordinated service protection measures, and staged installation to maintain service continuity. Working within a constrained corridor beneath and alongside a live main road-imposed limitations on crane positioning, access, and allowable working windows.

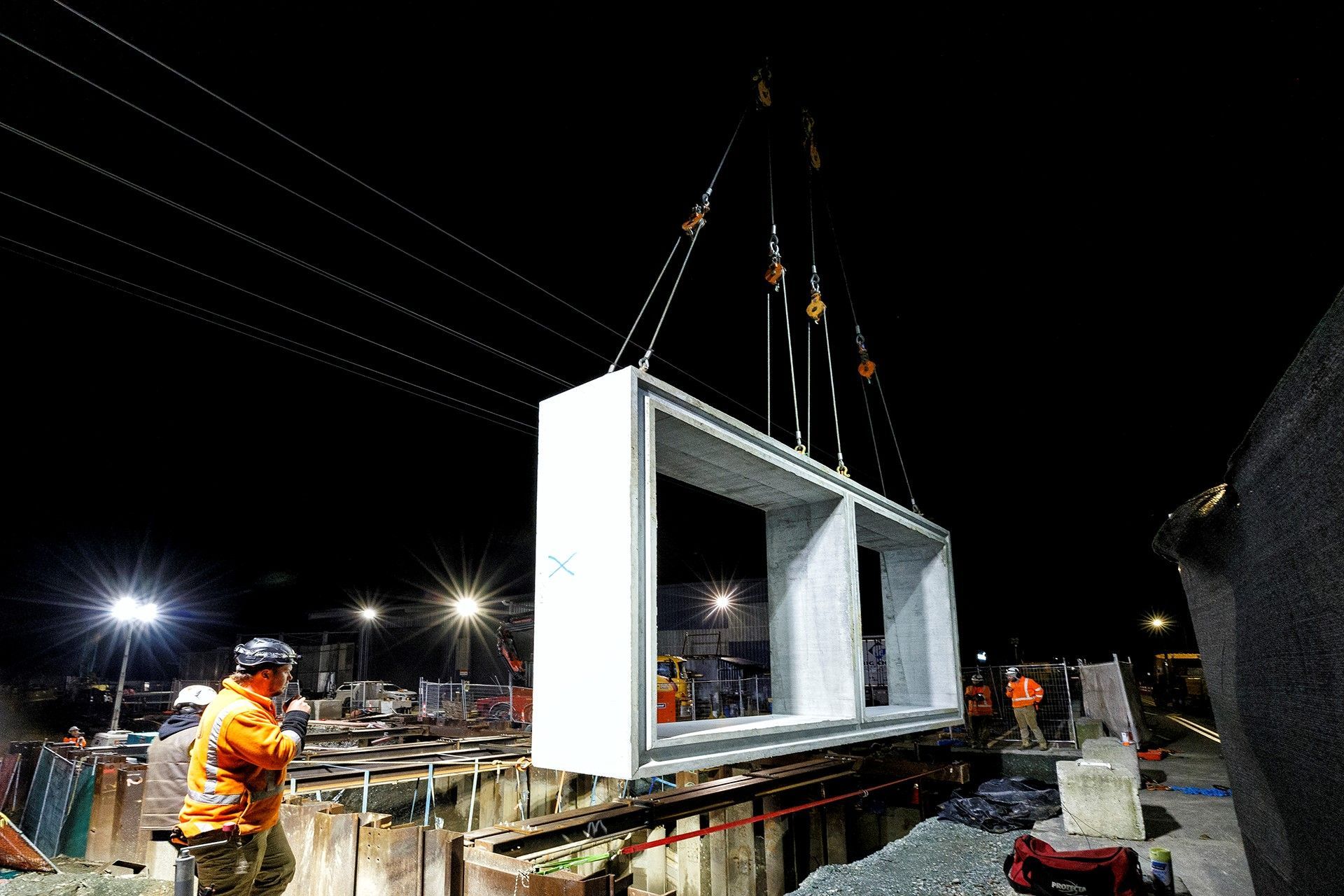

To manage traffic and safety requirements, installation works were undertaken during night shifts, introducing additional considerations around temporary works, lighting, noise management. SCP’s and Lift N Shift were up to the task with installation solutions to accommodate these constraints while maintaining structural performance, durability, and compliance with project specifications.


Precision, Collaboration, and Craftsmanship

Each element of the Saxton Creek Project showcases SCP’s advanced manufacturing capabilities, from mould design to quality control and finishing. Our in-house team worked collaboratively with our sister company Lift N Shift Ltd, who carried out all the cartage and assisted Downer NZ Ltd with the cranage and installation.


The result: a reliable, enduring precast infrastructure solution that supports flood management, community safety, and environmental sustainability.

At Specialised Concrete Products Ltd, we’re proud to contribute to projects that strengthen communities and celebrate local identity — one precast unit at a time

Project Gallery
